As solar energy continues to expand across residential, commercial, and industrial sectors, so does the responsibility to ensure systems are built with the highest possible safety standards.
Standing out in the market, Europa’s Solar Guardian offers exceptional reliability and ease of installation as a rapid shutdown solution. Built to deliver strong performance and dependable protection, it supports safer outcomes for today’s photovoltaic (PV) installations.

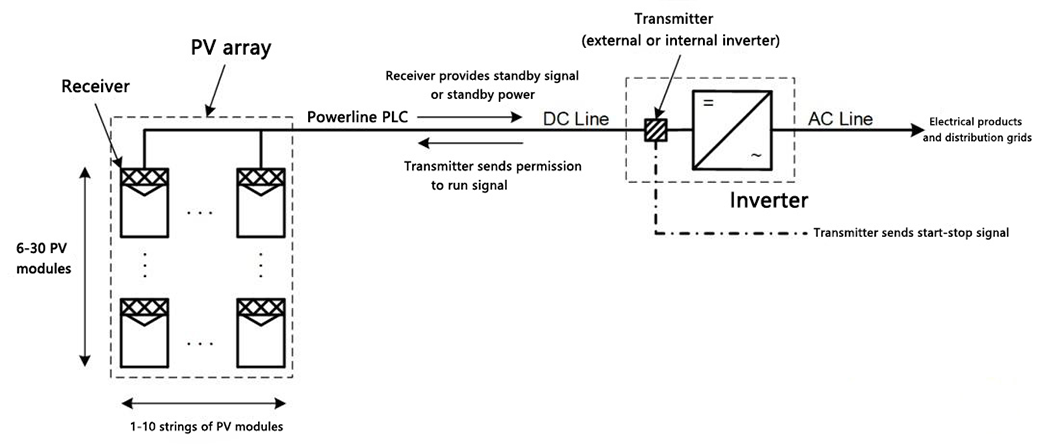

What Does a Rapid Shutdown Device Do?
Rapid Shutdown devices were originally invented to provide firefighters with a way to quickly de-energise the DC side of a solar PV system during emergencies. Although it is often assumed that turning off the inverter removes all electrical risk, this is not the case. Solar panels will continue generating electricity as long as they are exposed to sunlight, meaning high-voltage DC power can remain present within system wiring.
During a fire, emergency responders may need to access rooftops or cut into building structures to ventilate a burning property. This can bring them dangerously close to live conductors. A rapid shutdown device reduces this risk by isolating DC power, allowing crews to work more safely and with greater confidence.
In addition to emergency response, rapid shutdown capability is increasingly required by UK insurance providers before issuing or renewing policies for properties with PV systems. This helps ensure installations meet current safety expectations and remain compliant.
Solar Guardian: The New Standard in Rapid Shutdown Technology
Europa’s Solar Guardian has been purpose-built to offer the highest level of DC safety for modern PV installations. The device has been designed with reliability and performance in mind, and the isolation switch is fully TÜV, CE, CB and SAA certified.
Unmatched Safety for First Responders
The Solar Guardian enables emergency personnel to operate safely once the AC supply has been switched off. Its built-in auto-disconnection feature immediately shuts off DC power.
The device disconnects connected strings during faults, overloads, or maintenance, reducing the risk of fire and electric shock. It is engineered to address hazards associated with live DC electricity and solar panels that may become damaged during high-stress situations, such as electrical fires, structural damage or extreme weather conditions.
Automatic Protection During Faults or Power Loss
The Solar Guardian will automatically switch to the off position whenever the AC supply is disrupted for more than five seconds, interrupting the DC connection between the solar panels and the inverter. Once AC power has been restored for longer than five seconds, the device reactivates and restores the DC connection. A manual shutdown option is also included when required.
High Electrical Performance
- Supports up to 5 strings
- 55A max current / cuts currents up to 38A
- Max voltages up to 1500V
- Integrated temperature sensor triggers shutdown at 70°C
Built for Every Environment
The IP66-rated enclosure supports long-term durability in challenging environments. A waterproof vent valve helps prevent condensation, while slide-out mounting plates on both sides of the rear lid allow for quicker and easier surface mounting.

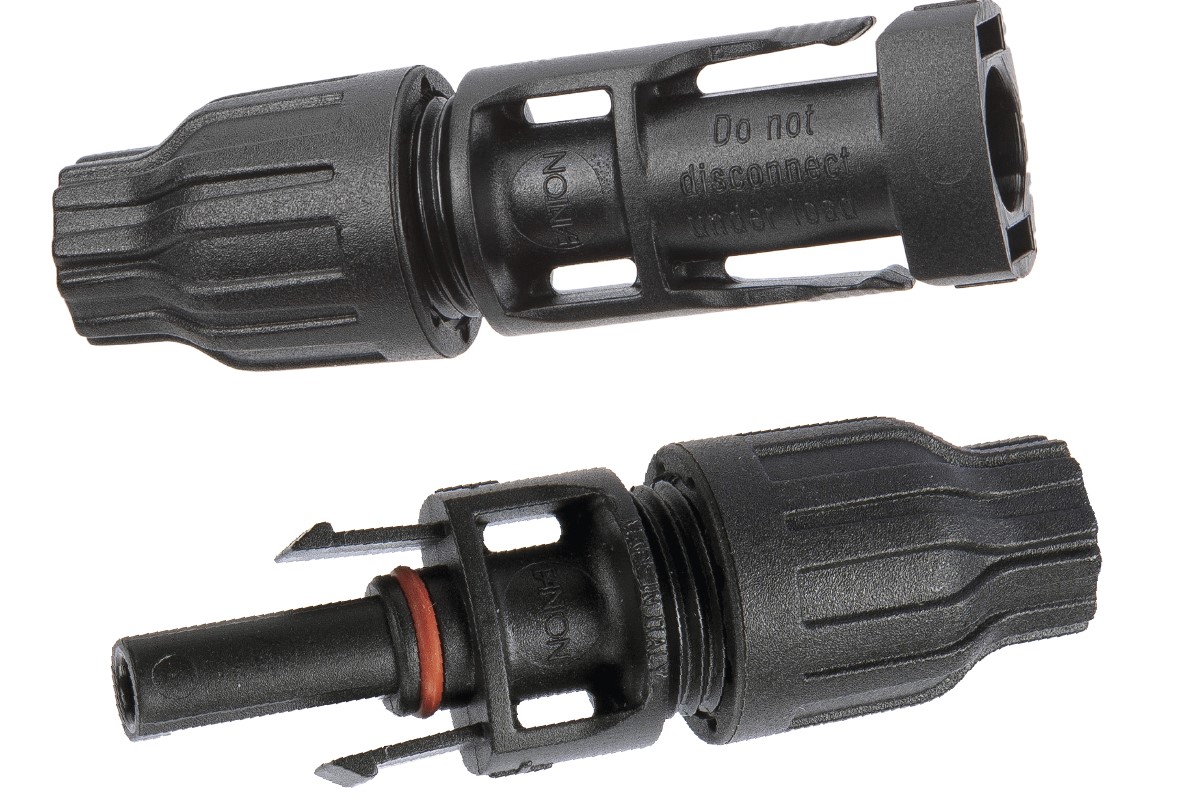

Fanton Connectors: Enhancing Safety and Installation Efficiency
To complement the Solar Guardian’s safety features, Europa recommends using Fanton connectors, including the Fanton PV FMC4. These connectors are designed to improve installation efficiency and reliability by reducing setup time by up to 50% while eliminating common crimping errors, helping installers achieve secure, consistent connections with greater confidence.
The spring clamp design securely locks the solar cable conductor in place, supporting reliable current transmission through a large contact surface.
- Providing IP65/IP68 protection
- Featuring patented Twinlock technology for secure, tool-less connections
- Allows for a 40A rated current and 1500V rated voltage
- Operating between -40°C to 85°C
- Upper temperature limit of 120°C

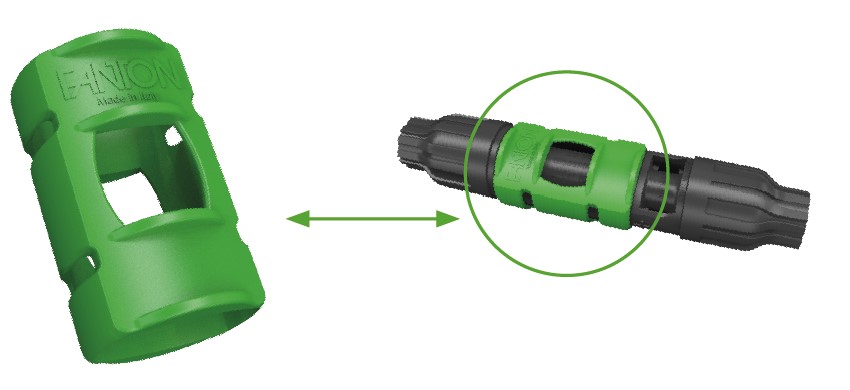

Connector Locking System: The Final Layer of Protection
For maximum safety, installers can add the Fanton locking system over the PV FMC4 connectors. These locks ensure that male and female connectors remain securely in place, preventing partial connections, which is a common cause of dangerous DC arcing.
The locks can only be removed with a dedicated tool, providing an additional safeguard against accidental disconnection and significantly reducing the risk of arc-fault fires.
As solar installations continue to increase, the role of reliable safety systems becomes even more important. Installers, building owners and emergency responders all rely on equipment that performs consistently under real-world conditions. The Solar Guardian has been developed with these practical requirements in mind, supporting safer operation throughout the life of a PV system.
By combining automatic DC isolation, certified components, fast-connect technology and secure connector locking, Europa’s Solar Guardian provides a dependable rapid shutdown solution for modern solar installations. It supports safer working practices during installation, maintenance and emergency situations, contributing to the continued and responsible growth of solar energy.
